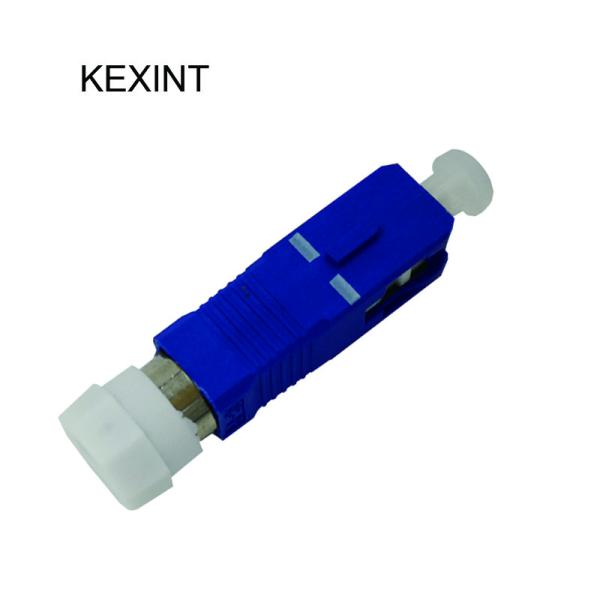

ST To SC Fiber Optic Adapters Female Male Optical Flanges Blue Gray
Product introduction
The male-to-female fiber optic adapters inexpensively adapt connector interfaces to new equipment, upgrade distribution panels and eliminate the need to re-terminate cable assemblies.
Application
1 Telecommunication
2 CATV
3 LAN & WAN
4 Network
5 Broadband
6 FTTP
Features
* Single mode and Multimode
* Zirconia sleeves or Phosphor bronze sleeves
* NTT standard compatible
* Available without flanges or with flange for duplex,
Saving panel space
* SC2 8Port high density for patch panel mount applications
* Meet JIS5974 and bellcore GR-326 standard
* Compliant with IEC874-14 & IEC874-19
* All parts compliant with ROHS
Product Specification
| Parameter | Unit | LC, SC, FC, ST |
| SM | MM |
| PC | UPC | APC | PC |
| Insertion Loss (Typical) | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Return Loss | dB | ≥45 | ≥50 | ≥60 | ≥30 |
| Exchangeability | dB | ≤0.2 |
| Repeatability | dB | ≤0.2 |
| Durability | Time | >1000 |
| Operating Temperature | °C | -40~75 |
| Storage Temperature | °C | -45~85 |

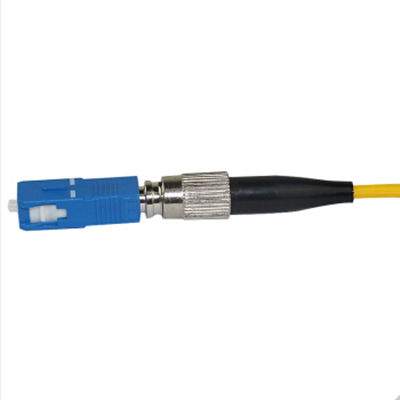

Pictures
1. Low insertion loss
The fibers are connected by an adapter through an internal open sleeve. We offer adapters in a variety of shapes and performances to ensure the connection between the fiber jumpers.
2. Good repeatability
Widely used in optical fiber distribution frame (ODF), fiber optic instrument table, fiber optic LAN, etc.
3. Good isolation
The signal field is electrically isolated from the main control terminal to prevent accidental loss of the main control terminal
Our advantages:
1.Good reply: Your inquiry related to our products or price will be replied within 24 hours.
2.OEM&ODM: We can help you to design or put your logo and company name into products.
3.Remote Technical support&Full Technical Document
4.Warranty: 1 year warranty( While the warranty is not responsible for those broken by violence or updated with other brands.)
5.English software, English Indicator
6.Professional, Very competitive price
7.Large Stock, Fast Delivery
8.Quality Assurance
Company Profile
SHENZHEN KEXINT TECHNOLOGY CO.,LTD. Is a high-technology enterprise devoted to optical fiber and network communication, provide a full range of products and solutions in FTTH(FTTX) system,Generic Cabling system (ALL-LAN).
It covers an area of 2000 square meters. The company has precise manufacturing & testing equipments, KEXINT has passed ISO 9001:2008 enterprise certification ,and products have been exported to more than 15 countries .The main products include optical fiber connector ,Fiber Fast Connector ,Fiber Patch cord, Fiber adaptor ,Fiber attenuator, Fiber coupler, PLC splitter CWDM,DWDM,OADM,MPO/MTP module,Fiber Optic Terminal Box, Fiber Optic Splice Closure etc. The products are widely used in telecom, broadcast & television, power engineering, as well as some other industries. What's more,we have established friendly business relationship with lots of telecommunication companies at home and abroad.
